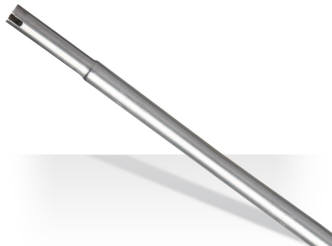

The Channel Master CM 1810 Super Mast is a 10 foot long, 18 gauge, high quality galvanized steel mast that works with all Channel Master antennas and mast mounts. Great for attic, rooftop, chimney, and wall installations.

• Active Elements: 64

• Less Wind loading

• Estimated Range: 70 miles VHF & 60 miles UHF

• UHF Elements: 35

• VHF Elements: 29

• Boom Length: 168.25"

• Maximum Width: 53.5"

• Vertical Height: 33"

• Element Diameter: 3/8"

• Turning Radius 101"

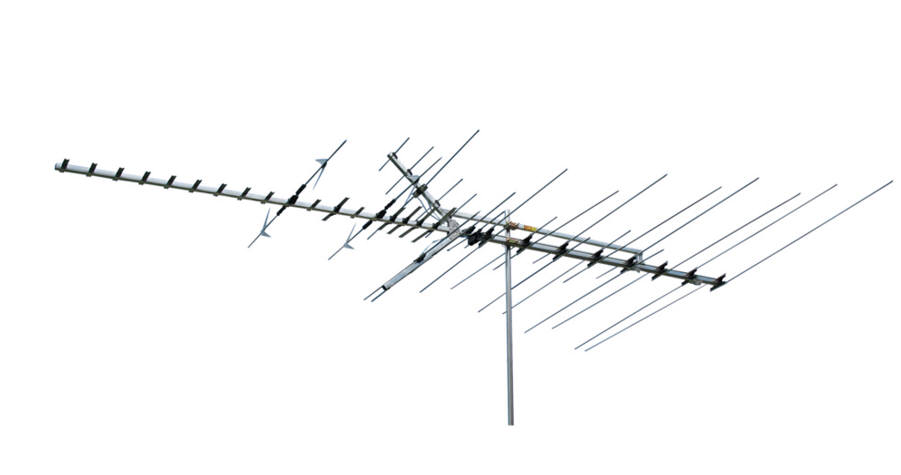

Winegards Platinum HD series antenna. Winegards HD-7698P features 64 active elements (29 VHF and 35 UHF) for superior DTV reception performance. A 168 overall boom length offers exceptional surface area for signal capture. The HD-7698P is specifically tuned for DTV channels 7 through 69. Installation is made easy due to the light 17 lb. weight. Zinc plated steel hardware is included, as is a 75 ohm downlead coupler that snaps into place on the antenna.

Product Highlights:

• receives digital and analog UHF and high-band VHF TV signals
• range is up to 80 miles
• 8-bay bowtie dipole design
• 41"W x 5-1/2"D x 33"H
• 20-1/2" turning radius (if used with an   antenna rotor)
• 75-ohm output for coaxial cable
• accommodates 1-1/4"-1-1/2"   mast   (mast not included)
• warranty: 3 years
